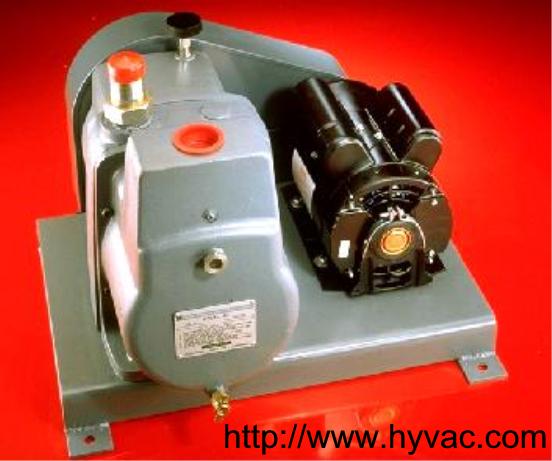

FLUOROCARBON EXTRACTION VACUUM PUMP


  FLUOROVAC 7 FLUOROVAC 14 FLUOROVAC 28 FLUOROVAC 45
CATALOG # 91138-101 91705-101 91905-101 91955-101
# OF STAGES: 1 1 1 1
FREE AIR DISP.:
(liters/min.)
(cfm)

79
2.8

160
5.6

300
10.6

500
17.7

ULT. VACUUM:
INCHES OF HG
TORR
MICRONS
>29.9
1.5 x 10-2
15
>29.9
1.5 x 10-2
15
>29.9
1.5 x 10-2
15
>29.9
1.5 x 10-2
15
WEIGHT:
NET (LBS)
SHIPPING (LBS)
90
115
106
131
135
160
154
180
DIMENSIONS: (inches)
(length)
(width)
(height)
17"
11"
12"
17"
11"
15"
18"
15 1/2"
18"
21"
18"
19 1/2"
OIL CAPACITY: 1 1/2 Qts. 2 Qts. 2 1/2 Qts. 3 1/2 Qts.
MOTOR: (115/220V 60Hz)
PUMP SPEED:
1/2HP
525 RPM
3/4HP
525 RPM
1 HP
525 RPM
1 1/2HP
525 RPM
INTAKE/EXHAUST
PORT (inches)

1/2" NPT

3/4" NPT

1" NPT

1 1/2" NPT






For More Information Contact HyVac Products 1-800-628-0850.
